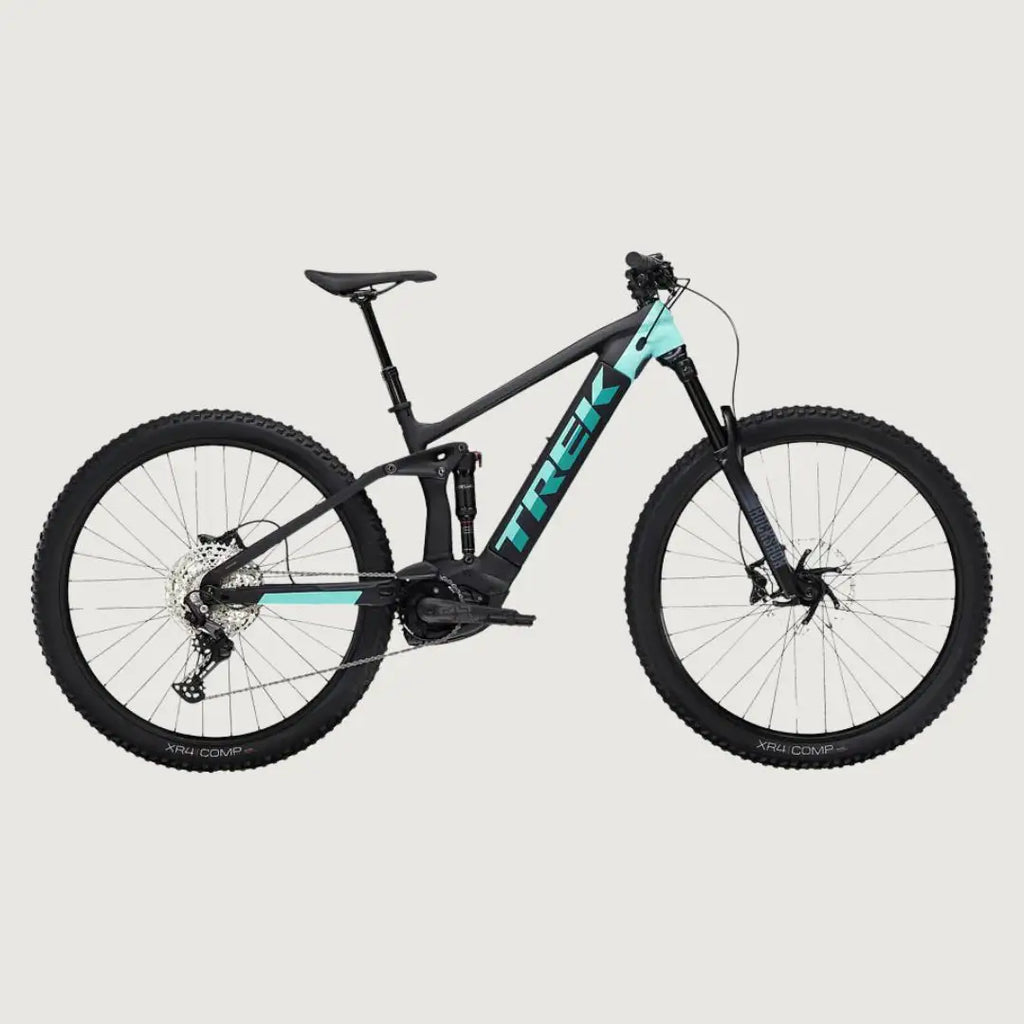

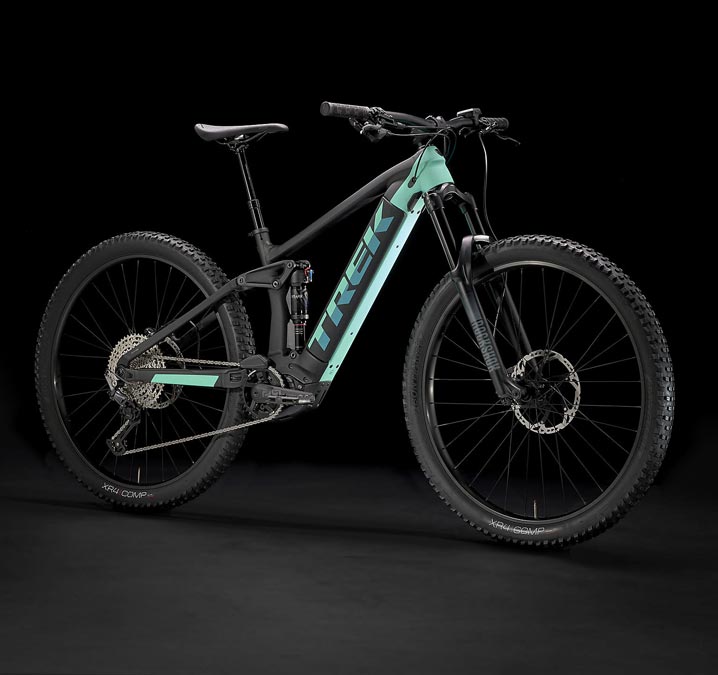

Trek Rail 5 500W Gen 2 E-Bike - Size L

The Trek Rail 5 500W Gen 2 E-bike is designed for riders who want to tackle the big trails with the assistance of a powerful Bosch drive system. Built to handle rough terrain, this electric mountain bike features high-end trail technology similar to Trek's analog trail bikes but with the added boost of electric power. Whether you're climbing steep inclines or descending rocky descents, the Rail 5 provides the support and performance you need to conquer any trail.

Size: L - appropriate for Rider with height 174 - 188 cm or 5'9" - 6'2" feet.

Features:

1. Alpha Platinum Aluminium Frame: The frame is constructed from Alpha Platinum Aluminium and features a Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, and Boost148 technology for enhanced strength, durability, and performance on the trail.

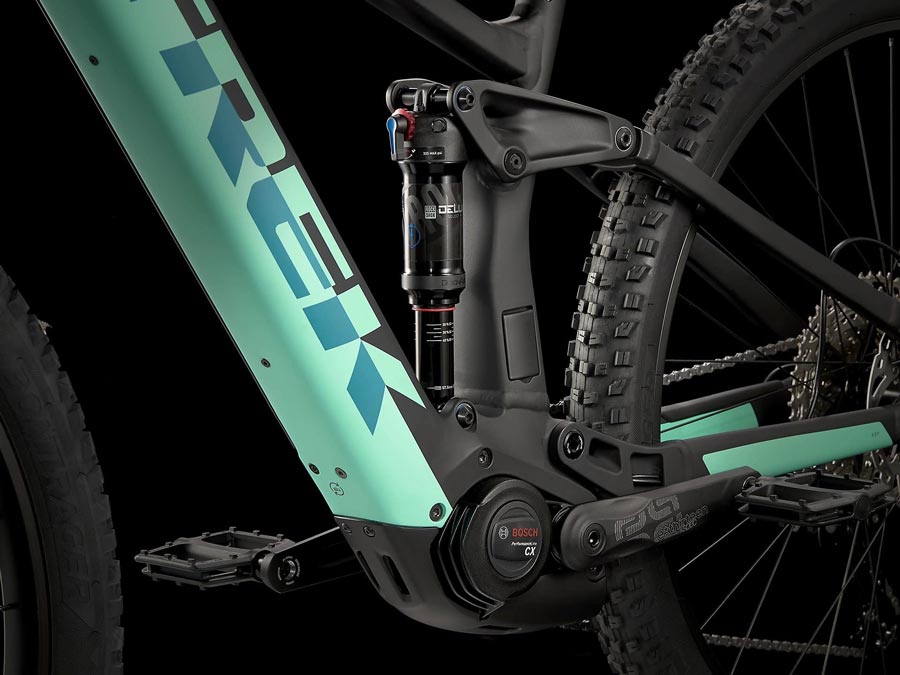

2. RockShox Suspension: Equipped with a RockShox 35 Gold RL fork with DebonAir spring, Motion Control damper, lockout, and 160mm travel, along with a RockShox Deluxe Select+ shock with 230mm x 57.5mm travel, providing plush and responsive suspension performance to handle rough terrain with ease.

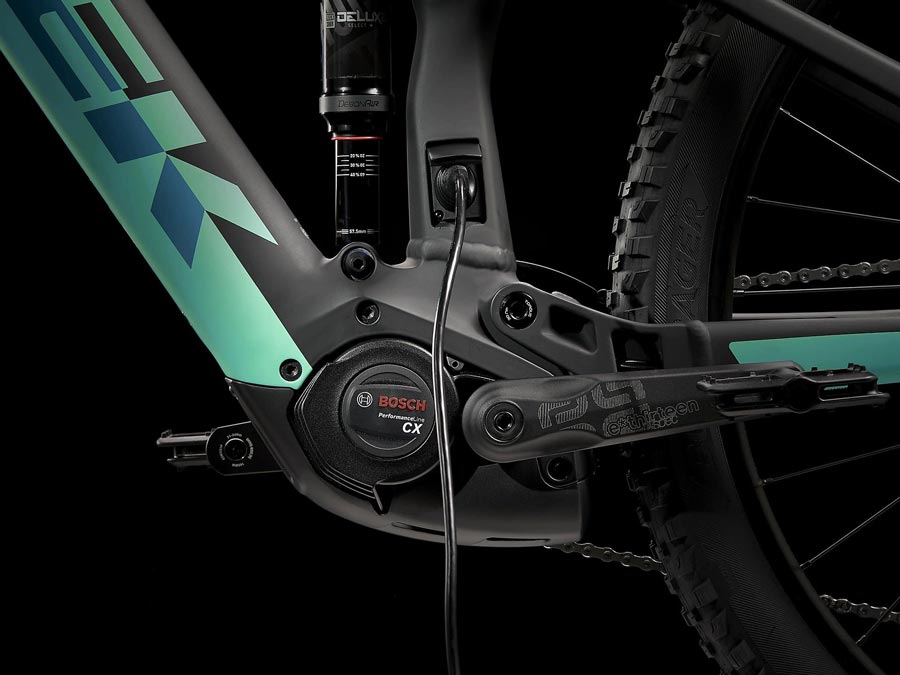

3. Powerful Bosch Drive System: The bike features a powerful Bosch drive system that provides assistance while pedaling, making uphill climbs easier and allowing you to cover more ground with less effort.

4. Shimano Drivetrain: The Shimano Deore M6100 12-speed drivetrain offers smooth and reliable shifting, while the Ethirteen Espec Plus crankset provides efficient power transfer.

5. Bontrager Components: Includes Bontrager sealed bearing hubs, Alex MD35 rims, Bontrager XR4 Comp tires, Bontrager Arvada saddle, TranzX or Bontrager dropper seatpost (depending on size), Bontrager alloy handlebar, Bontrager XR Trail Comp grips, and Bontrager Rhythm Comp stem for reliable performance and control.

6. Shimano Hydraulic Disc Brakes: Equipped with Shimano 4-piston hydraulic disc brakes with MT4100 levers and MT420 calipers for reliable stopping power in all conditions.

7. Weight: The bike weighs approximately 23.88 kg (52.65 lb), providing a sturdy and stable platform for tackling challenging trails.

8. Weight Limit: The bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 136 kg (300 lb), ensuring it can accommodate a wide range of riders and gear.

Specifications:

Frame:

• Material: Alpha Platinum Aluminium
• Features: Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle
• Travel: 150 mm

Fork:

• Brand: RockShox
• Model: 35 Gold RL
• Spring: DebonAir
• Damper: Motion Control
• Lockout: Yes
• Steerer: Tapered
• Offset: 44 mm
• Crown: Oversized (for eMTB)
• Axle: Boost110, 15 mm Maxle Stealth
• Travel: 160 mm

Shock:

• Brand: RockShox
• Model: Deluxe Select+
• Size: 230 mm x 57.5 mm

Wheels:

• Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
• Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
• Skewers: Bontrager Switch thru-axle, removable lever
• Rim: Alex MD35, tubeless compatible, 32-hole, 35 mm width
• Tire: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
• Max Tire Size: Frame: 29x2.60", Fork: See manufacturer

Drivetrain:

• Shifter: Shimano Deore M6100, 12-speed
• Rear Derailleur: Shimano Deore M6100, long cage
• Crank: Ethirteen Espec Plus, 34T, 165 mm length
• Cassette: Shimano Deore M6100, 10-51, 12-speed
• Chain: Shimano Deore M6100
• Pedal: VP-536 nylon platform
• Max Chainring Size: 34T

Components:

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost:
  • Size S: TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  • Size M, L, XL: TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
• Brake Rotor: Shimano RT76, 6-bolt, 203 mm

Weight:

• Medium size: 23.88 kg/52.65 lb

Weight Limit:

• Maximum total weight limit (combined weight of bicycle, rider, and cargo): 136 kg (300 lb)

With its combination of high-end trail technology, powerful Bosch drive system, and durable components, the Trek Rail 5 500W Gen 2 E-bike is designed to provide riders with the confidence and capability to tackle any trail with ease.
