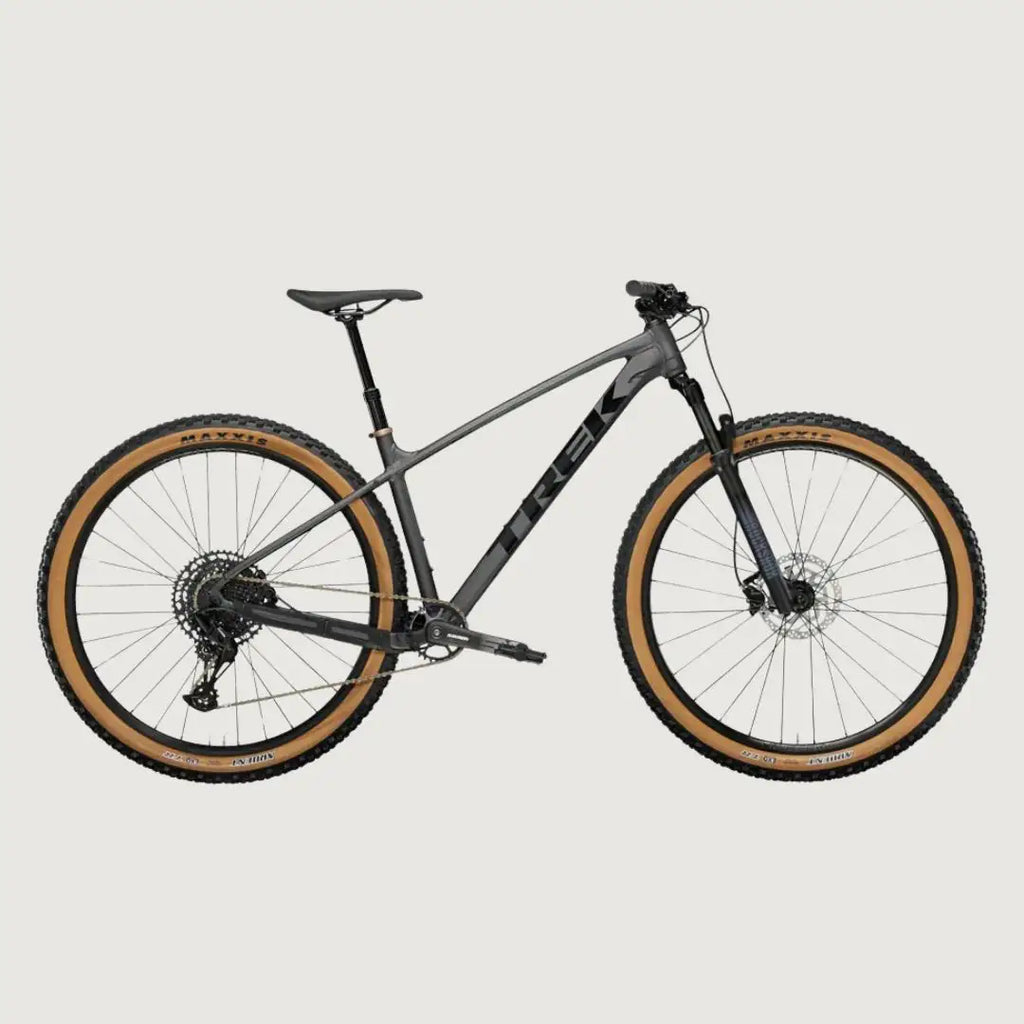

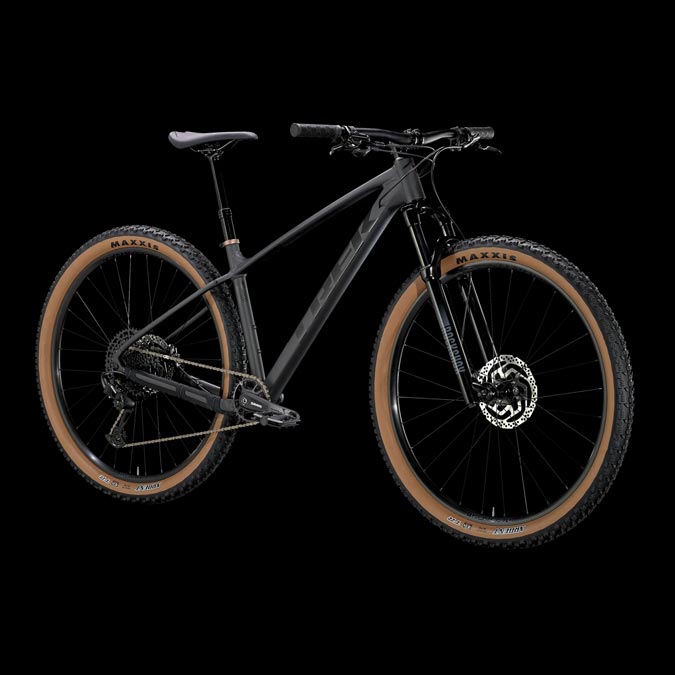

Trek Marlin 8 Gen 3 Mountain Bike

The Trek Marlin 8 Gen 3 Mountain Bike is a confidence-boosting trail companion with updated geometry for enhanced control on singletracks, while offering features suitable for everyday use. With 12-speed SRAM shifting and an upgraded RockShox air spring suspension fork, it's designed for both trail progression and daily riding.

Overview:

It's right for you if...

• You seek a versatile bike that can evolve with your progress on the trail while being suitable for daily activities like commuting to school, work, or grocery shopping.

The tech you get:

• A lightweight aluminum frame with modern trail riding geometry and internal routing for cable protection and sleek aesthetics.
• An air-spring RockShox fork offering adjustability and reduced weight compared to a coil spring.
• Wide-range SRAM shifting for simplicity and power on the trail.
• Hydraulic disc brakes for reliable stopping power.
• Dropper post included for easier navigation through technical sections and steep descents.

Why you'll love it:

• Modern mountain bike geometry ensures confident handling on singletracks while remaining versatile enough for road and bike path use.
• Premium RockShox fork with an air spring provides lightweight and adjustable suspension.
• 1x12 drivetrain offers simplicity and a wide range of gears for varied terrain.
• Dropper post facilitates saddle adjustment for technical sections and steep descents.
• XXS and XS sizes feature a curved top tube and lower standover height for easier mounting and dismounting.

SPECIFICATIONS

Frameset:

• Frame:
  • Size: XXS, XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Size: S, M, ML, L, XL: Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

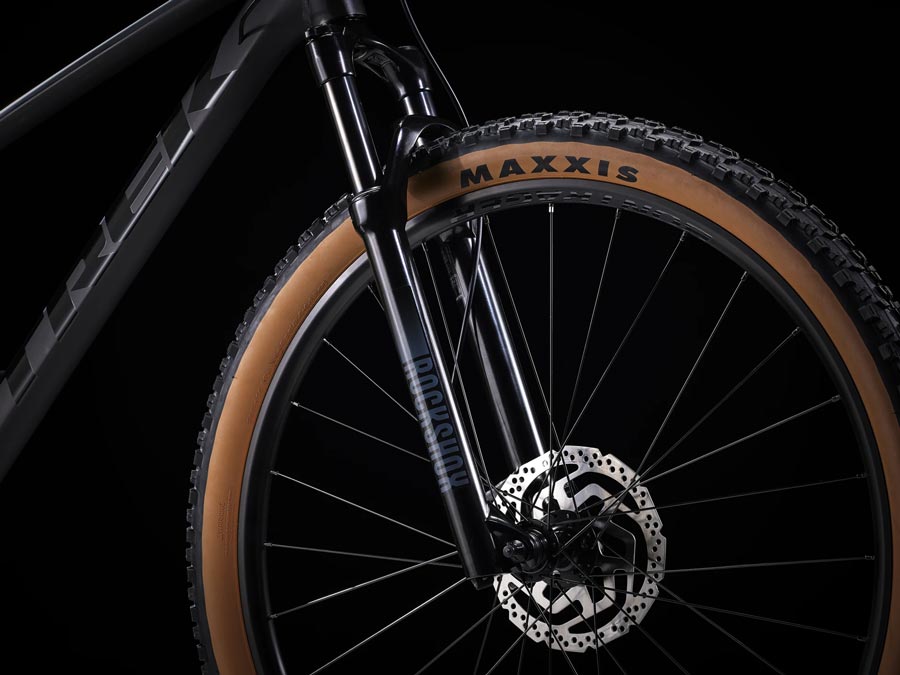

• Fork:
  • Size: XXS: RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
  • Size: XS, S: RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Size: M, ML, L, XL: RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
  • Max compatible fork travel: 120mm, XXS: 80mm

Wheels:

• Hub front: Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR
• Hub rear: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Skewer rear: Bontrager Switch thru axle
• Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
• Tire:
  • Size: XXS: Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 26x2.40''
  • Size: XS, S: Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''
  • Size: M, ML, L, XL: Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''
  • Max tire size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain:

• Shifter: SRAM SX Eagle, 12 speed

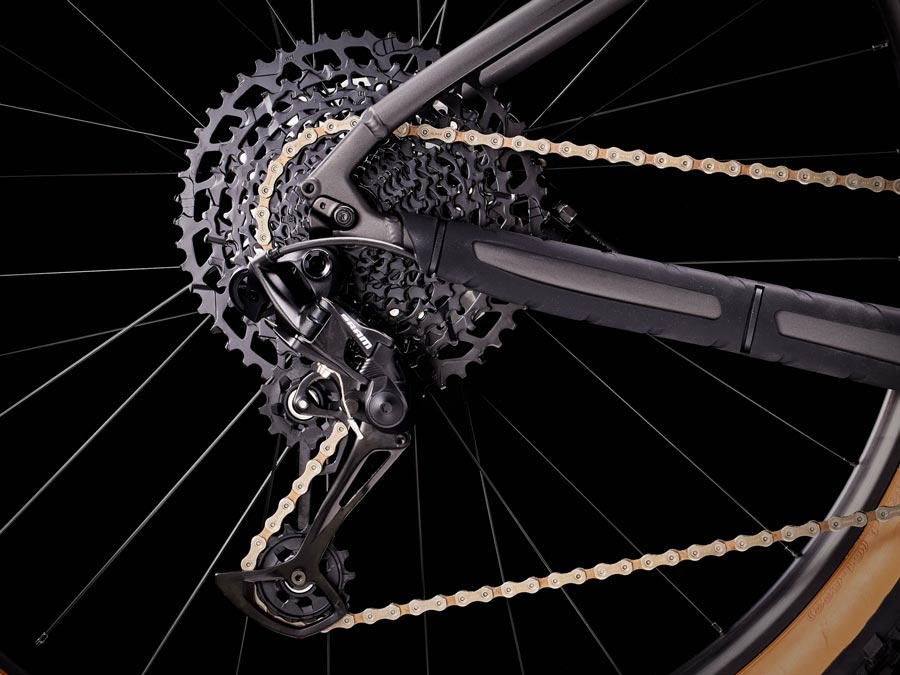

• Rear derailleur: SRAM SX Eagle

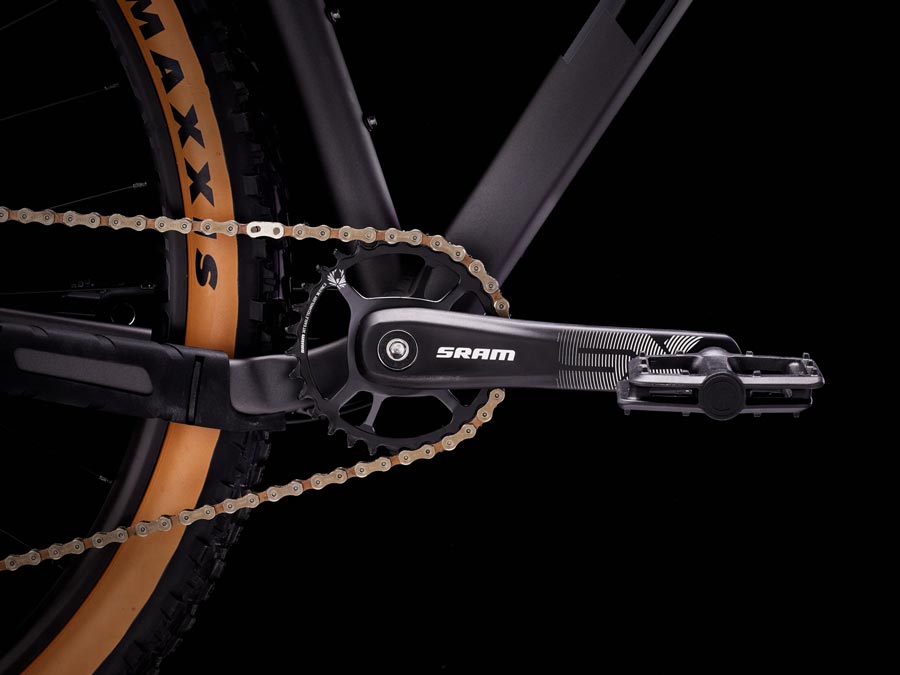

• Crank:
  • Size: XXS: SRAM SX Eagle, 30T steel ring, 49mm chainline, 155mm length
  • Size: XS, S, M: SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length
  • Size: ML, L, XL: SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length
• Bottom bracket: Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
• Cassette: SRAM PG-1210 Eagle, 11-50, 12 speed
• Chain: SRAM SX Eagle, 12 speed
• Pedal: VP-536 nylon platform
• Max chainring size: 1x: 34T, 2x: 36/22

Components:

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
  • Size: XXS, XS, S: TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
  • Size: M: TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
  • Size: ML, L, XL: TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
• Handlebar:
  • Size: XXS, XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Size: S: Bontrager alloy, 31.8mm, 15mm rise, 720mm width
  • Size: M, ML, L, XL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem:
  • Size: XXS, XS, S: Bontrager Comp, 31.8mm, 7 degree, 35mm length
  • Size: M, ML, L: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Size: XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
• Headset: Semi-integrated, 1-1/8''

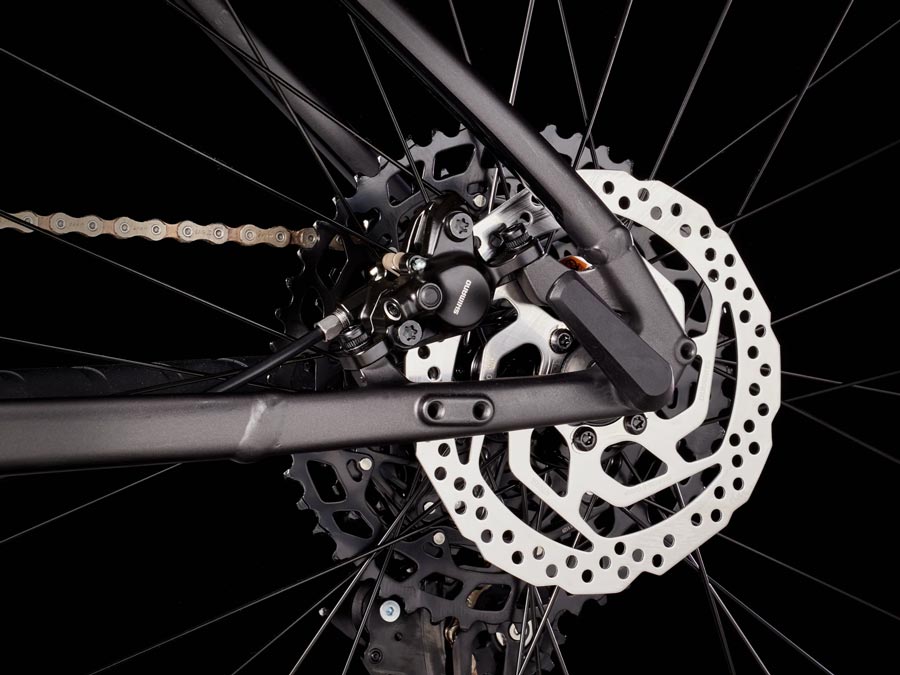

• Brake: Shimano MT200 hydraulic disc
• Brake rotor:
  • Size: XXS, XS, S, M, ML, L, XL: Shimano RT26, 6-bolt,160mm
  • Size: M, ML, L, XL: Shimano RT26, 6-bolt,180mm
• Brake Set: Shimano MT200 hydraulic disc
• Rotor size: Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight:

• M: 14.29 kg / 31.51 lbs
• Weight limit: Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)

The Marlin 8 is a progressive trail bike that's equally adept at tackling singletracks and handling daily life. With premium features and versatile performance, it's built to support your skill development for years to come.
