Description
Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.
It's right for you if...
You're looking for a light, fast, and capable hybrid bike with quality parts. You plan to use your bike to explore light trails, hit the pavement for fast fitness rides, run errands, and more.
The tech you get

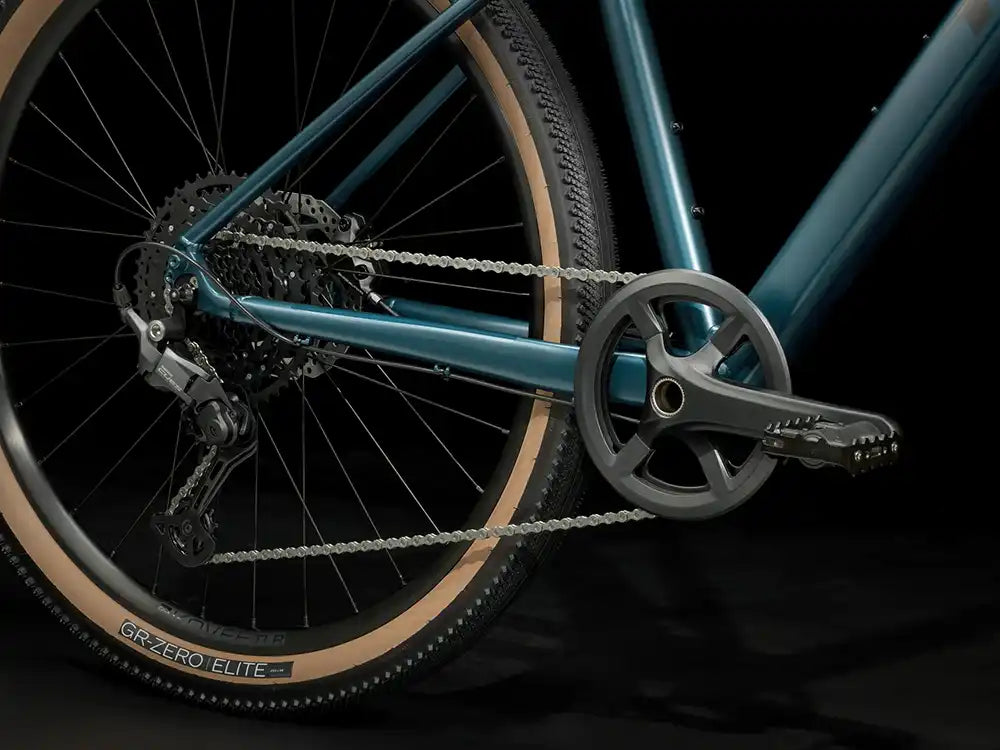

A lightweight aluminum frame with sleek internal cable routing, a lightweight carbon fork, tubeless-ready Bontrager Kovee 650b wheels and wide 50c tires for capability and comfort on varied terrain, and a simple, yet durable 1x10 Shimano CUES drivetrain that ditches the front derailleur for easier operation. Don't worry, the wide-range 11-48 cassette still gives you all the gears you need to conquer hills and crush flats. Plus, powerful disc brakes and mounts for a rack and fenders.
The final word
Dual Sport 3 is fast and efficient on pavement and confident and capable on dirt and gravel trails. It has terrain-smoothing wheels and tires and a sturdy and simple 1x Shimano CUES drivetrain.
Why you'll love it
- Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
- The 1x drivetrain gives you all the gears you need and none you don’t
- Versatile gravel tires are fast on pavement and grippy on rougher terrain
- The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
Features:
-
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
-
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Frameset
| Frame | Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR |
|---|---|
| Fork | Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Skewer front | 139x5mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Skewer rear | 152x5mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve |
| Tire | Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50mm |
| Max tire size | 27.5x2.00" |
Drivetrain
| Shifter | Shimano CUES U6000 w/optical gear display, 10 speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: S, M Prowheel alloy, 40T narrow-wide ring, 170mm length |
|
Size: L, XL Prowheel alloy, 40T narrow-wide ring, 175mm length |
|
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedal | Wellgo nylon body, alloy cage |
| Max chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager H1 |
|---|---|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar |
Size: S Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width |
|
Size: M, L Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width |
|
|
Size: XL Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width |
|
| Grips | Bontrager XR Endurance Elite |
| *Stem |
Size: S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Size: M, L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
|
Size: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake rotor | Shimano RT26, 6-bolt, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Weight
| Weight | M - 12.05 kg / 26.57 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
