The TREK Domane+ ALR is an aluminum drop-bar electric bike designed to provide roadies with an authentic road bike experience while offering an extra boost. Comes without Pedals. Here are the specifications:
Frameset:
- Frame: 300 Series Alpha Aluminium with Fazua Evation integrated drive system, tapered head tube, internal routing, flat-mount disc brakes, mudguard mounts, and 148x12 mm thru axle.
- Fork: Domane+ carbon fork with tapered alloy steerer, flat-mount disc brakes, and 12x100 mm thru axle.
Wheels:
- Front Wheel: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle.
- Rear Wheel: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 148x12 thru axle.
- Front Skewer: Bontrager Switch thru axle, removable lever.
- Max Tire Size: 38c.
Drivetrain:
- Shifters: Shimano 105 R7025 for sizes 49, 52; Shimano 105 R7020 for sizes 54, 56, 58, 61 (short-reach lever, 11-speed).
- Front Derailleur: Shimano 105 R7000 (braze-on).
- Rear Derailleur: Shimano 105 R7000 (long cage, 34T max cog).
- Crankset: FSA Alloy for Fazua, 50/34 chain rings, with lengths varying based on frame size.
- Cassette: Shimano 105 HG700-11, 11-34, 11-speed.
- Chain: Shimano 105 HG601, 11-speed.
Components:
- Saddle: Bontrager Arvada Comp with steel rails (138 mm width).
- Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm diameter, 8 mm offset, 330 mm length.
- Handlebar: Bontrager Comp VR-C alloy handlebar with varying widths depending on frame size.
- Handlebar Tape: Bontrager Supertack Perf tape.
- Stem: Bontrager Elite alloy stem with lengths varying based on frame size.
- Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom.
- Brakes: Shimano 105 hydraulic disc brakes.
- Brake Rotors: Shimano MT800 or EM810, CenterLock, 160 mm (depending on frame size).
Accessories:

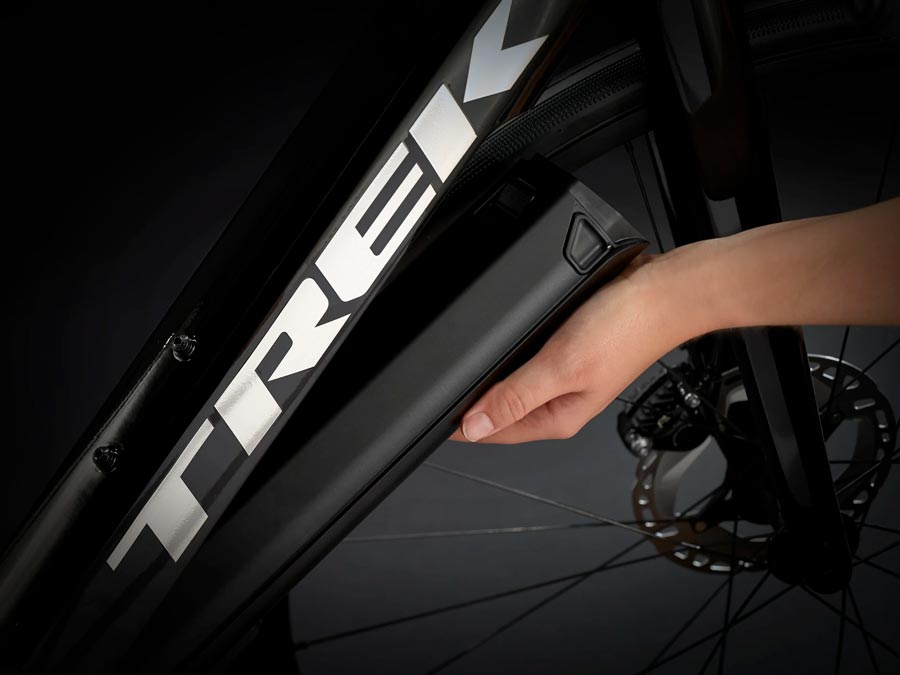

- E-bike System: Fazua Evation battery (250 Wh), Fazua Evation Drive Pack (25 km/h max assist, 32 km/h for New Zealand), Fazua Evation charger (220-240V), Fazua Evation touch remote.
Weight:
- Weight: 56 - 15.21 kg / 33.53 lb.
- Weight Limit: Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb).
Sizing
Size
|
Rider Height
|
Inseam
|
| 49 |
156 - 162 cm |
74 - 77 cm |
|
5'1" - 5'4" |
29.1" - 30.3" |
| 50 |
158 - 163 cm |
74 - 77 cm |
|
5'2" - 5'4" |
29" - 30" |
| 52 |
163 - 168 cm |
76 - 79 cm |
|
5'4" - 5'6" |
30" - 31" |
| 54 |
168 - 174 cm |
78 - 82 cm |
|
5'6" - 5'9" |
31" - 32" |
| 56 |
174 - 180 cm |
81 - 85 cm |
|
5'9" - 5'11" |
32" - 33" |
| 58 |
180 - 185 cm |
84 - 87 cm |
|
5'11" - 6'1" |
33" - 34" |
| 60 |
185 - 190 cm |
86 - 90 cm |
|
6'1" - 6'3" |
34" - 35" |
| 62 |
190 - 195 cm |
89 - 92 cm |
|
6'3" - 6'5" |
35" - 36" |
